T3 & T4 Left Hand Threadform

Garrett has replaced right hand threadform with left hand threadform turbine wheel assemblies for models T3 and T4. The left hand threadform is identified by a hex shaft nut (indicating left hand) rather than the 12-point shaft nut (indicating right hand) on turbocharger assemblies and CHRA’s.

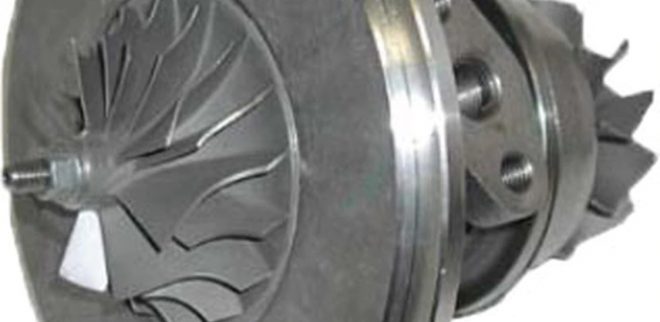

shaft_t1_chra_garrett

Advantages of Left Hand Threadform

  • Shaft nut loosening under load is virtually eliminated
  • A true quality improvement – reflects latest generation wheel design technology
  • Improved balance tolerance – thrust collar vapour blast eliminated
  • Fewer turbine wheels to inventory due to part number standardization efforts
  • No need for costly spiralock shaft nut



Egarrett.com © Honeywell
Allied Signal Turbocharger Aftermarket
